Steel Box - Stainless Steel (PG 1)

GENIUS transport containers made of stainless steel — the premium solution for transporting or storing lithium-ion batteries, battery modules and cells.

Premium container solution for the safe transport of critical lithium-ion batteries

GENIUS transport containers made of stainless steel offer a premium solution for the safe transport and proper storage of lithium-ion battery systems in accordance with UN numbers 3090, 3091, 3480, and 3481. In addition to intact battery systems, they are particularly suitable for critically defective lithium-ion batteries, which pose a significant hazard both during transport and storage.

  • over 40 positive fire tests with a wide range of cell types and over 100 kW/h.
  • Safest & certified protection against thermal runaway or exothermic reaction.
  • Filtering of toxic gases & protection of dangerous goods by GENIUS PyroBubbles®.
  • Safety system for storage and transport in accordance with the new ADR standard for damaged & critically defective lithium-ion batteries and modules (SP 376, PI911 / LP906).
  • Tested boxes with UN approvals in accordance with ADR (for road), RID (for rail) & IMDG (for sea).
  • Steel containers in various sizes f rom S to LP, in single-walled and double-walled versions.
  • Permanent reuse of the system, no maintenance required, easy to handle, stackable and drive-under.
FlyerProduct Flyer Metal Transport Boxes P911/LP906Download

Technical data

Item number:Product:External dimensions mm (LxWxH) *Internal dimensions mm (LxWxH) *Internal volume (l) *Empty weight (mass in kg) *Max. total weight (gross-mass in kg)Max. Payload Dangerous goods (netmass) in kg
21 - Stainless steel transport container - VG1
2122S-Box X1 E, incl. PyroBubbles Premium800 x 600 x 776676 x 476 x 5731847120785
2125S-Box X2 E, incl. PyroBubbles Premium800 x 600 x 1156676 x 476 x 95330785303165
2124M-Box X1 E, incl. PyroBubbles Premium1200 x 800 x 8531076 x 676 x 650473116430200
2118M-Box X2 E, incl. PyroBubbles Premium1200 x 800 x 13031076 x 676 x 1100800141701400
2127L-Box X1 E, incl. PyroBubbles Premium1720 x 920 x 9531596 x 796 x 750953175890525
2128L-Box X2 E, incl. PyroBubbles Premium1720 x 1320 x 12301650 x 1250 x 10002062260855400
2120XXL-Box E, incl. PyroBubbles Premium2582 x 1566 x 11312376 x 1360 x 85427603991738550
2126XXL-Box E with inner box E, incl. PyroBubbles Premium2582 x 1556 x 11312070 x 1060 x 54011857941738550
2131LP-Box² X1 E (double-walled), incl. PyroBubbles Premium3190 x 2190 x 14072700 x 1700 x 649298320083960800

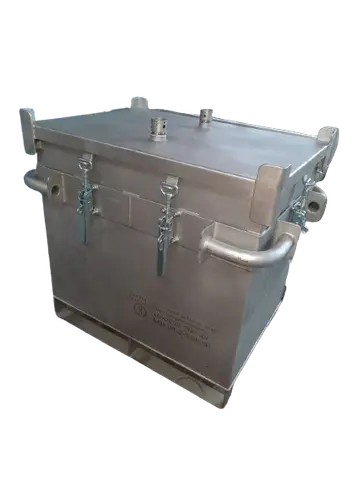

S-Box X1.png

S-Box X1 E

Art.-Nr. 2122

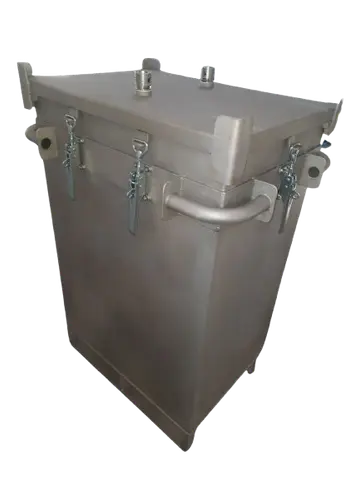

S-Box X2 E

Art.-Nr. 2125

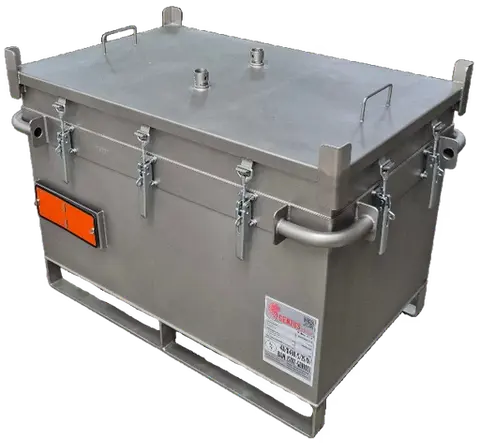

Q7Tps7bcVpBE9jKLHibsrODDg.avif

M-Box X1 E

Art.-Nr. 2124

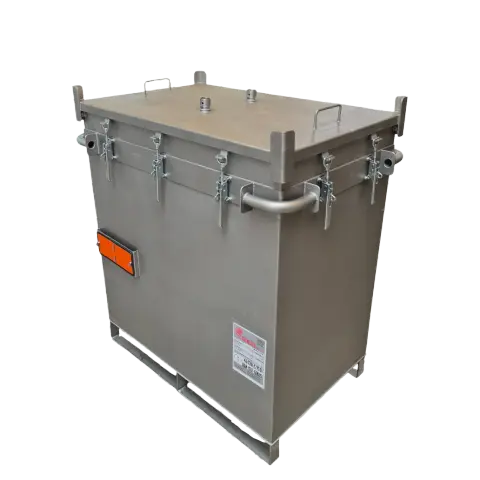

Polymere TransportBox M X2 Hoch

M-Box X2 E

Art.-Nr. 2118

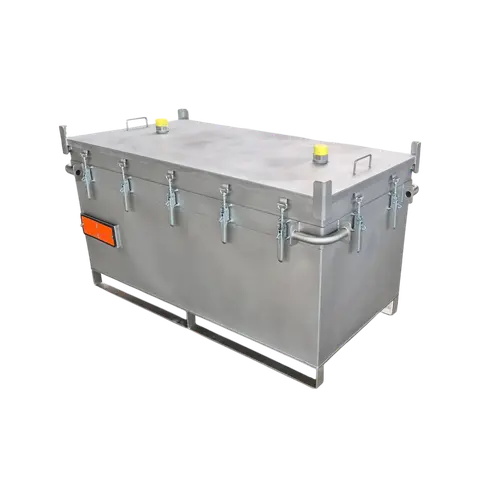

L Box X1(von rechts).png

L-Box X1 E

Art.-Nr. 2127

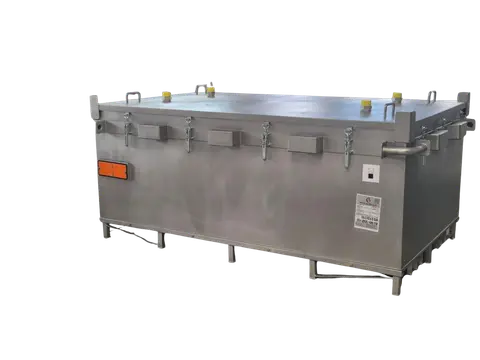

XXL Box E.png

XXL Box E

Art.-Nr. 2120

XXL Box E with Inner Box E

Art.-Nr. 2126

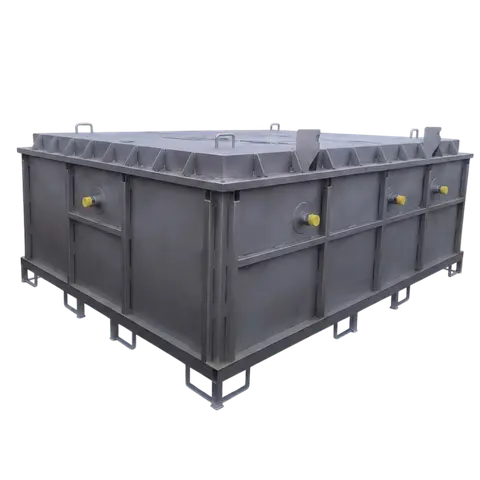

2131 LP-Box² E ohne Palette.png

LP-Box² X1 E (double-walled)

Art.-Nr. 2131

LP-Box² X2 E (double-walled)

Art.-Nr. 2132

L-Box X2 E

Art.-Nr. 2128
